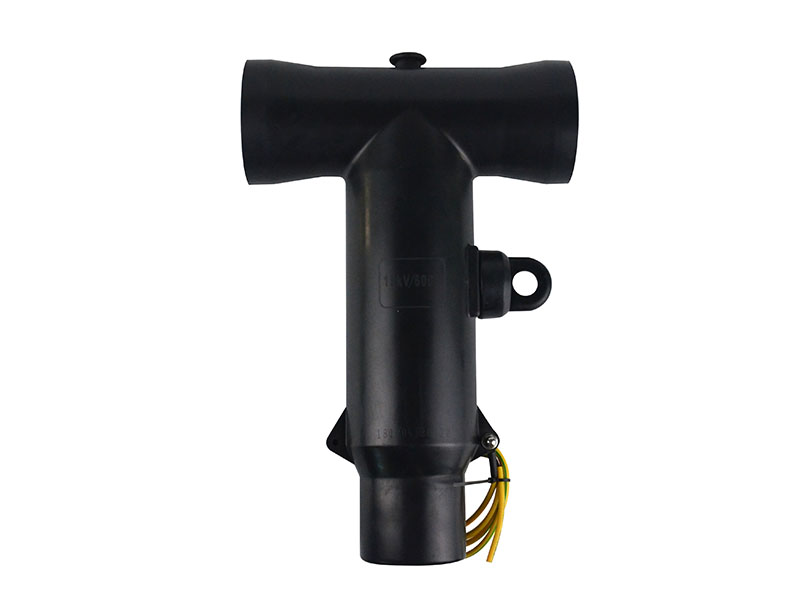

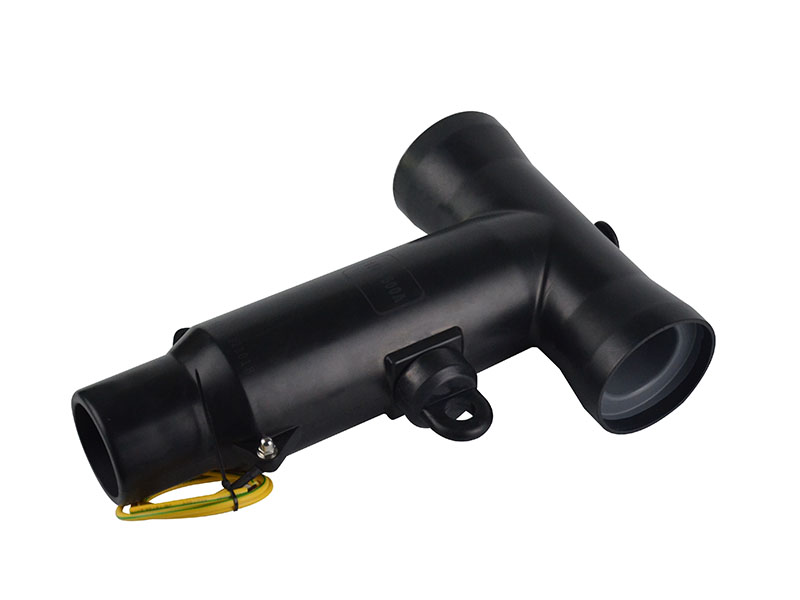

American T-joint
The t-type /t-iiconnector is used for the main network system of the cable branch box or as the incoming and outgoing cable connector of the ring network cabinet .It can connect the 600A high-voltage sleeve and multiple socket ,or it can also connect with the 600A bus sleeve and elbow plug to form multiple cable branches .The product has an electroscope .Rated current 600A ,suitable for cable section 25 ~ 400mm,suitable for the 52 /80/5/8" casingin no .40medium.
Get a quoteAll insulation ,all sealing ,all shielding products .With the introduction of international advanced post injection insulation technology ,the electrical performance index is higher ,and the use is safer and more reliable .T type joint and elbow type plug assembly than traditional structure shortened after 30 mm ,not only fully meet the requirement of ring network cabinet installation space ,and further the structure of the cable branch box size smaller . 2mm thick uniform outer shield layer ,surface resistance 1000 Q /cm,most advanced prefabricated cable connector .It is the most advanced prefabricated cable joint in the world.

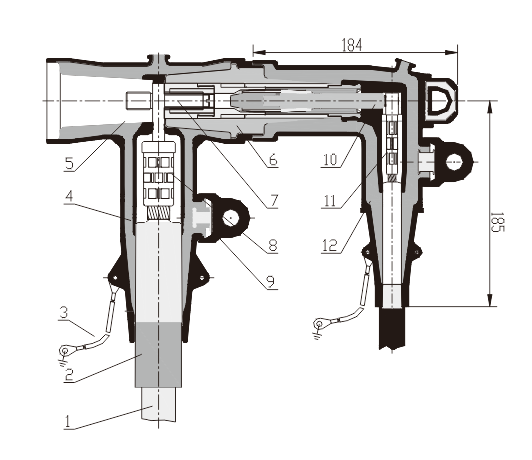

1.The Cable2.Stress Cone
3.Ground Wire
4.t-joint
5.Casing
6.Transfer Head
7.Double -end bolt
8.Round Head Terminal
9.Check The Cover
10.Conductive Rod
11.Elbow Connector Terminal
12.Elbow Plug
