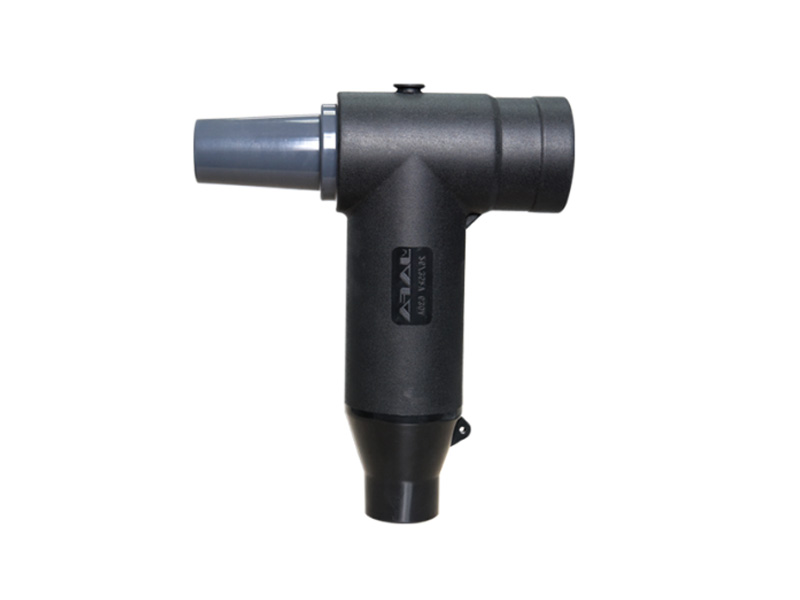

35kV shielded rear plug

Suitable for the high voltage electrical apparatus of power plant ,power transform station at orunder 35kV ,such cable branch box,combination transfformer andincoming /outgoingline of GISsystem .Fully insulated fully sealed and fully screened .Adopt advanced back injecting technology ,the electric performance reach the international leading level .

Get a quote

Product details introduction

More safe and reliable Little effect by bad weather to mounting condition .Coagulation dew resistant and contaminate proof ,free ofmaintenance .The stress settled with high partial discharge level adopted German technology .The small dimension sufficiently meets the mounting space requirement .Leading proovision cable connector in the world . The conductor cross sectin is 50 ~630mm2

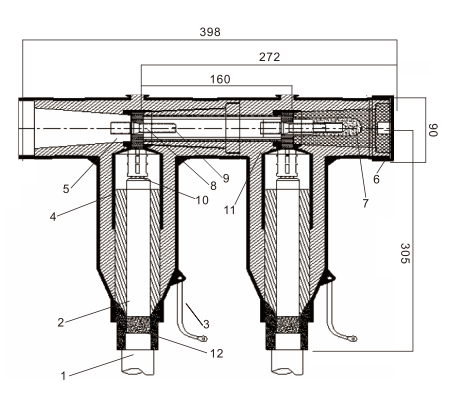

1、Cable

2、Cable adaptor

3、Earthing wire

4、Front connector body

5、Bushing

6、Screen cover

7、Un-screen insulating plug

8、M16/M12-75mm M16/M12-75boIf

9、Copper linking rod

10、Comp ression lug

11、Rear connnector body

12、Semi-conductive layer
